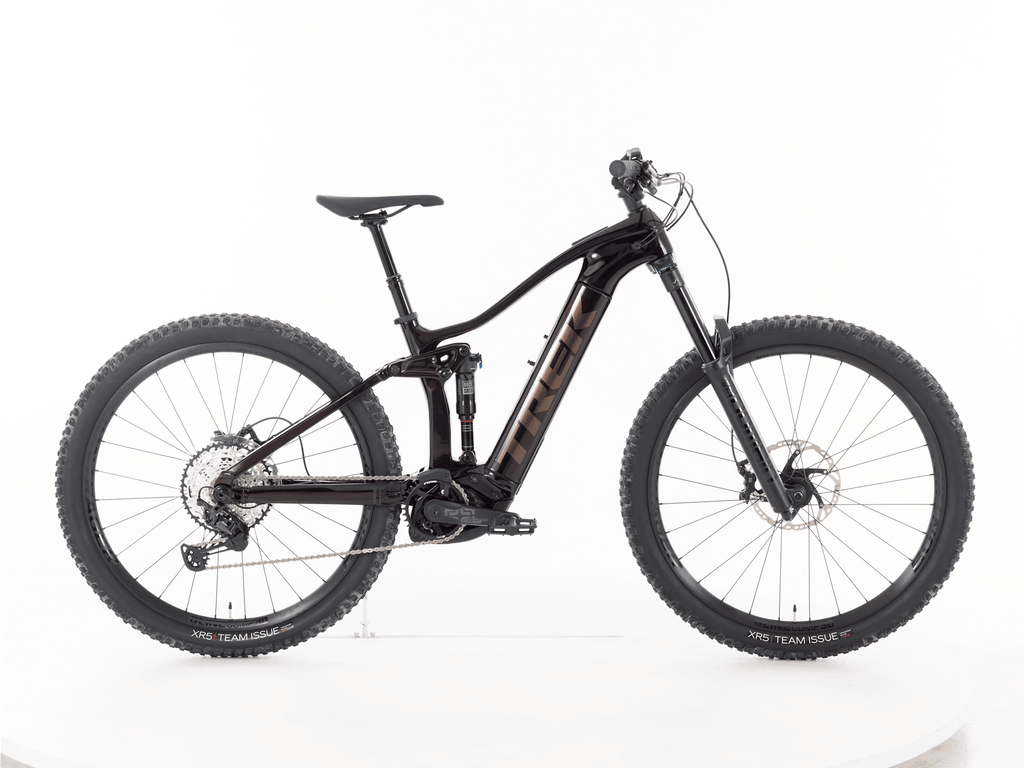

The Rail 9.7 is a long-travel carbon VTTAE that allows you to get to the sections you love faster. It has an improved frame that gives better depth for great stability on the trail, and an intelligent Bosch electric motor with a beefy 750 Wh battery to make climbing easier and give the impression of endless rides.
An OCLV Mountain Carbon frame and integrated 750 Wh removable battery, 160mm RockShox Domain fork, 150mm rear travel with RockShox Deluxe Select+ shock, and the latest Bosch Performance Line CX intelligent system capable of speeds up to 25km/h, and the new LED Remote control with Bluetooth® for easy connectivity and activity tracking through the eBike Flow app. A Shimano SLX/XT 12-speed single drivetrain, a Bontrager Line telescopic seatpost, powerful 4-piston brakes for greater confidence on descents, and 29-inch Bontrager Line Comp 30 wheels that are fully tubeless (including puncture protection).
Main features:
- OCLV Mountain frame in carbon with integrated battery.
- Transmission Shimano SLX XT 1x12 speeds.
- Shimano M6100 203/203 mm hydraulic disc brakes.
- Bosch Performance CX motor with a 750Wh battery.
| Frame | Carbon: OCLV Mountain carbon main frame, removable integrated battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker arm, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel |
| Fork | RockShox Domain RC, DebonAir spring, Motion Control shock, lockout, tapered steerer tube, 44mm offset, oversized VTTAE fork head, Boost110, Maxle Stealth 15mm, 160mm travel |
| Shock absorber | RockShox Deluxe Select+, 230x57.5 mm |
| Motor | Bosch Performance CX, magnesium motor body, 250 watts, 85 Nm, limited assistance to 25 km/h |
| Battery | Bosch PowerTube 750 Wh |
| Display | Bosch Kiox with anti-theft solution |
| Derailleur lever | Shimano SLX M7100, 1x12 speed |
| Rear derailleur | Shimano XT M8100, long cage 12 speed |
| Cassette | Shimano SLX M7100, 10-51 Teeth |
| Chain | Shimano SLX M7100 |
| Crankset | E*thirteen E*spec Plus, 34 dts, 165 mm long |
| Brakes | Shimano, 4 piston, hydraulic disc, M6100 lever, M6120 caliper, 203/203 mm |
| Wheels | Bontrager Line Comp 30, Tubeless Ready, 28 holes, presta valve |
| Tires | Bontrager XR5 Team Issue, Tubeless Ready, Aramid bead wire, 120 tpi, 29x2,5 inches |
| Handlebars | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0 degree, 50 mm length |
| Saddle | Bontrager Arvada, steel rails, 138 mm wide |
| Saddle post | Size: S Bontrager Line telescopic seatpost, 100 mm travel, internal routing, 31.6 mm, length 345 mm Size: M, L, XL Bontrager Line telescopic seatpost, 150 mm travel, internal routing, 31.6 mm, length 440 mm |
| Weight | 24.65 kg |
